E-Stop Switch Replacement

The emergency stop switch is located just to the left of the tensioner assembly, on

the left tensioner bracket. Refer to the following procedure to replace this switch:

1. Turn OFF the peripheral and unplug the power cord from the source.

2. Remove the three screws and any ground wire; then remove the cover from the

left side of the thread tensioner assembly as shown in Figure 2-6.

3. Loosen the locking collar on the e-stop switch assembly at the inside surface of

the tensioner cover (see Figure 2-7).

4. Refer to Figure 2-7 to locate the small square opening in the switch block

through which you will see the small locking tab on the switch assembly body.

5. Remove the switch block by depressing the tab on the assembly body through

the opening in the switch block and sliding the switch block off the end of the

assembly body.

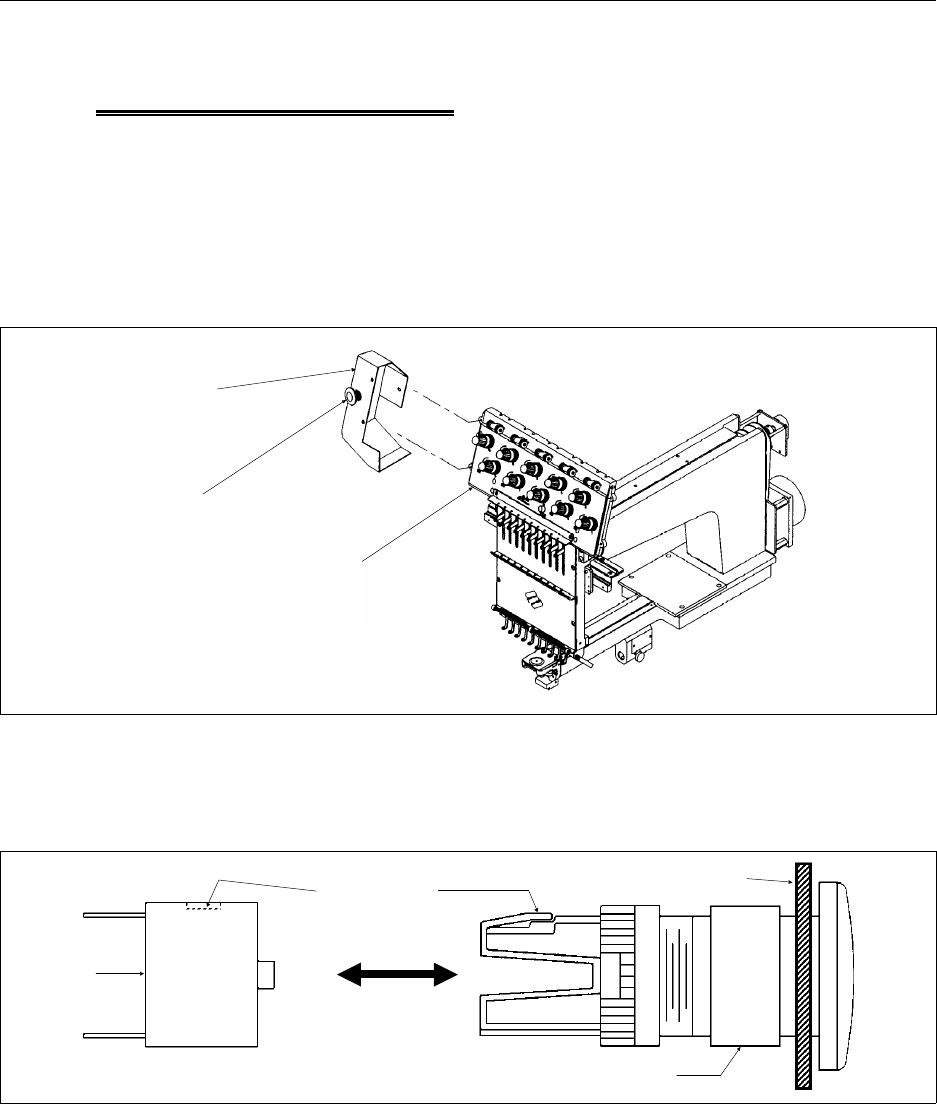

e-stop

switch

assembly

left side

tensioner

cover

thread

tensioner

assembly

Figure 2 - 6

switch

block

locking collar

depress here

through the

switch block

tensioner cover

(inside surface)

Figure 2 - 7

2 - 6 E-Stop Switch Replacement

EMT 10T Technical Manual Melco Embroidery Systems
