Ethernet Network PCB

The Ethernet PCB is positioned inside the card cage of the peripheral between the

CPU PCB and the Interface PCB as Figure 2-11 shows. Refer to the following

procedure for replacement.

1. Turn OFF the power switch to the EMT 10T.

2. Remove the card cage cover and install a static grounding strap between the

working surface and the personnel performing this procedure.

3. Disconnect the Ethernet cable from the end of the PCB at the Ethernet card edge

mounting bracket.

4. Remove the screw and washer at the card edge mounting bracket for the PCB.

Low Voltage

Driver PCB

Interface

PCB

CPU PCB

Ethernet

network

PCB

XYZ Motor

Driver

Amplifier

PCB

Backplane PCB

(in bottom of

card cage)

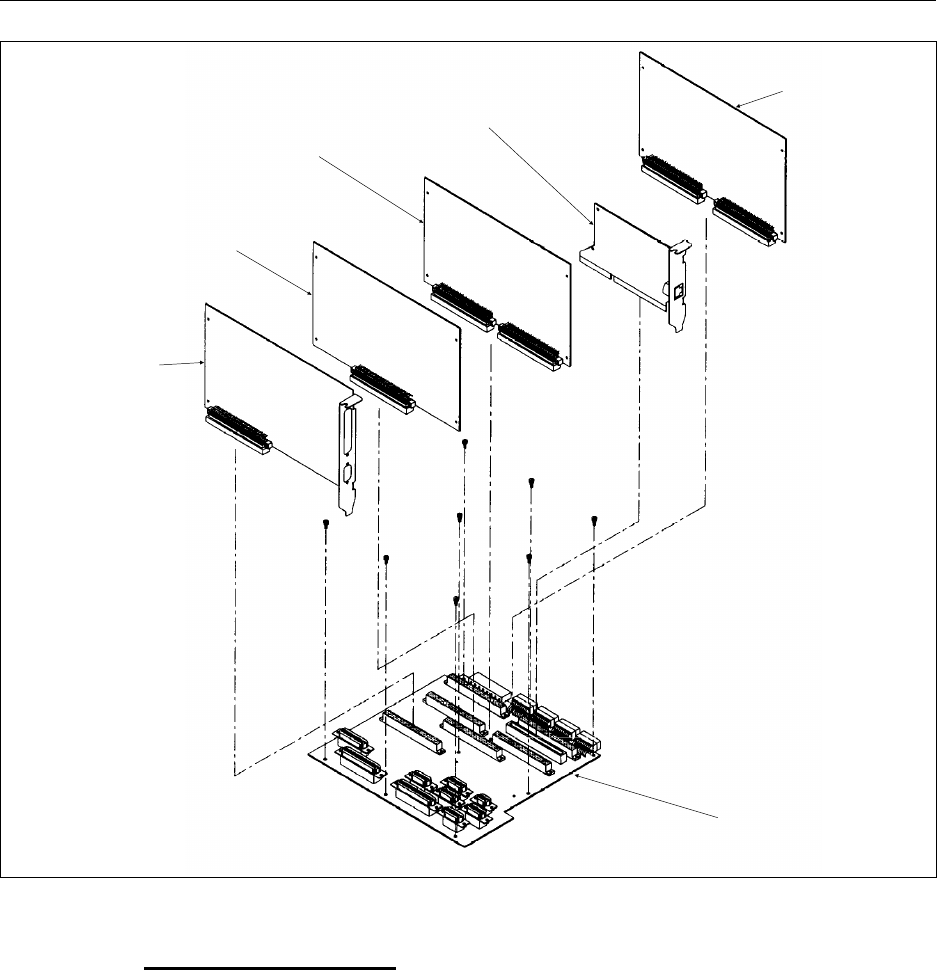

Figure 2 - 11

Ethernet Network PCB 2 - 13

110291-01, Rev D 2. Service Maintenance (except head and trimmer)
